How To Plan The Most Efficient Kitchen Layout For Your NYC Renovation

Table of contents

• Understanding Kitchen Layout Fundamentals: The Work Triangle And Beyond
• Assessing Your Space: Measuring And Analyzing Your NYC Kitchen
• Four Classic Kitchen Layouts And Their NYC Applications
• Maximizing Storage in Your Kitchen Layout
• Planning For Essential Kitchen Zones
• Common Kitchen Layout Mistakes To Avoid In NYC Renovations

Although kitchens are typically the focal point of most NYC apartments, they don’t always meet the exact needs you’re looking for. Whether the issue is lack of storage or a structural design that doesn’t accommodate your cooking routine, we’re often up against these challenges until we decide to adjust accordingly - that is, if we can adjust accordingly. In many cases, even if we want to renovate and implement an efficient kitchen layout, we’re presented with issues like limited square footage, building regulations, and co-op/condo restrictions. So, how can you achieve dream kitchen design despite these obstacles?

The answer is proper layout planning and finding a partner who can help you achieve your vision. In the following kitchen layout planning guide, we’ll explain how the foundation of kitchen functionality is often based around working within the square footage you already have, while leveraging thoughtful design to maximize both space and property value.

At Gallery, efficient kitchen layout is one of our specialties. Our full-service design-build team has refined the process of transforming even the tightest kitchens into engaging spaces that balance beauty, flow, and functionality. Below, we’ll outline the design strategies and planning principles that make efficient NYC kitchens not only possible, but exceptional.

‍

‍

[#1]Understanding Kitchen Layout Fundamentals: The Work Triangle And Beyond[#1]

Every great kitchen design starts with a thoughtful layout. Long before open concept homes became standard, designers were aiming for ways to make kitchens more efficient. In the 1920s, industrial psychologist and engineer Lillian Moller Gilbreth partnered with the Brooklyn Borough Gas Company to introduce The Kitchen Practical, which is a pioneering study that analyzed how people moved while cooking. Her research was unveiled at the 1929 Women’s Exposition and introduced her concept of “circular routing,” an early version of what later became known as the kitchen work triangle.

The core of the concept found the most practical kitchen designs connected the three most-used areas — sink, stove, and refrigerator — into a triangular relationship designed to minimize wasted steps, while maintaining comfort in motion. Almost a century later, the work triangle remains one of the most practical principles in kitchen design, proving the foundation of an efficient kitchen layout has always been about human interaction and not just aesthetics.

From Work Triangle To Work Zones

While the work triangle is still a foundational principle of kitchen design, today’s kitchens have become more adaptable to modern living. Instead of serving homeowners up a space that simply allows for productive cooking, current kitchen designs now need to accommodate hosting, working, and entertainment. As a result, many designers (ourselves included) now consider work zones beyond Gilbreth’s original triangle approach. Zones are dedicated areas designed around specific functions, including food prep, cooking, cleaning, and serving, allowing multiple people to work comfortably without crossing paths.

In NYC kitchens, this zag toward zones is extremely valuable. Whether you’re working with a compact galley layout or a large open plan, clearly defining primary and secondary zones means making the most of every square foot. Primary zones typically include the essentials (the stove, sink, and refrigerator), while secondary zones address your personal lifestyle needs, like a coffee station, bar area, or appliance garage.

Adapting The Triangle For NYC Living

Unfortunately, many NYC apartments don’t offer the space to follow ideal design principles. Narrow kitchens, column obstructions, and load-bearing walls often dictate where gas lines are settled and appliances can go. However, if your kitchen design can maintain the core principles of the work triangle (efficiency, accessibility, and flow), an updated design can often fit within the constraints of your floor plan. By adjusting dimensions, integrating multi-functional surfaces, and considering how you actually use your kitchen day to day, even cramped kitchen layouts can be optimized for comfortable cooking and beyond.

At Gallery KBNY, we’ve refined this approach across countless NYC renovations, designing kitchens that feel intuitive no matter their shape or size. Whether optimizing a galley kitchen in a UES co-op or reworking an open-concept layout in a Hell’s Kitchen loft, we focus on making the most of your space, enhancing not just the kitchen - but the flow of the whole home.

‍

‍

[#2]Assessing Your Space: Measuring And Analyzing Your NYC Kitchen[#2]

The challenge with most NYC kitchens is they all come in different shapes and sizes, each with their own set of constraints. So, before dialing into any efficient kitchen layout design, the most essential step is understanding exactly what you’re working with. At Gallery KBNY, our comprehensive design build process begins with architectural evaluation, building code expertise, and in-depth planning, allowing us to engineer a kitchen layout that’s both imaginative and practical.

Start With Precision: Accurate Measurements Matter

Since even an inch can determine whether your refrigerator door opens properly, measurements must be triple-checked. Every surface, clearance, and ceiling height affects how your new kitchen will flow. A single miscalculation can impact cabinetry orders, appliance placement, and DOB approvals.

Identifying Structural Realities

Understanding a home’s structural limitations is essential to any efficient kitchen layout in NYC. Load bearing walls, plumbing stacks, and gas lines all define what can and cannot be moved. Gas lines specifically dictate where major appliances like ranges and ovens must remain, since rerouting them can require extensive permitting and coordination with building management. In many NYC buildings, especially pre war cooperatives, plumbing and ventilation are shared between units, meaning relocating a sink or gas range may trigger board reviews or Department of Buildings approvals. The most space-efficient kitchen designs account for these conditions early, using creative design solutions to achieve the desired flow while also staying compliant.

• Dig Deeper: Custom Layout Design For NYC Apartments: Maximizing Aesthetic And Function

The Role Of Light And Orientation

Despite not directly affecting the traditional triangle design, natural light often drives how we design the look and function of your kitchen. Window placement affects both brightness and how you position key features like counters, sinks, and dining areas. A north-facing kitchen may need extra lighting to stay warm and welcoming, while a south-facing kitchen often benefits from finishes that reduce glare.

Navigating Building-Specific Constraints

Despite their best intentions, buildings can create problems when looking to renovate. Some co-ops restrict changes to ceiling height or ventilation, while others enforce strict guidelines for wet-over-dry layouts or after-hours work. Even the type of wall construction (plaster, concrete, or drywall) can affect electrical and plumbing adjustments. Knowing these parameters up front allows us to anticipate potential delays and plan around them efficiently.

• Consider Further: In-Depth Co-Op Board Approval Process For Complex NYC Renovations: What to Expect

Evaluating Electrical And Plumbing Systems

Finally, a successful kitchen renovation depends on identifying any potential problems hiding behind walls. Evaluating your existing electrical panel, outlets, and water lines keeps your space code-compliant and ready to move forward with hesitation-free kitchen renovation planning. In pre-wars, outdated wiring or low electrical load is common and often requires upgrading the electrical load (if possible) to accommodate modern appliances and lighting. Similarly, verifying plumbing access and slope is essential before moving fixtures or adding new ones.

• Learn More: The Essential Guide to Electrical Updates in NYC Apartment Renovations

‍

‍

[#3]Four Classic Kitchen Layouts And Their NYC Applications[#3]

As we’ve illuminated in this kitchen layout planning guide, space-efficient kitchen design in NYC is all about working smart within limited space. The following classic layouts show how thoughtful planning can make any footprint more functional and efficient.

‍

‍

Galley Kitchen Layout

A galley kitchen features two parallel counters with a central walkway, making it ideal for narrow NYC apartments where efficiency is essential. Common in pre-war buildings with fixed walls and mechanical systems, this layout maximizes countertop and storage space within limited width. The most functional galleys are 4 to 6 feet wide, offering enough clearance for doors to open while maintaining smooth circulation. Single-entry versions suit one-cook kitchens, while double-entry galleys improve ventilation and flow but need careful planning to prevent congestion. In our downtown Brooklyn co-op renovation, a custom galley layout provided separation for cooking while maintaining connection to the main living area.

‍

‍

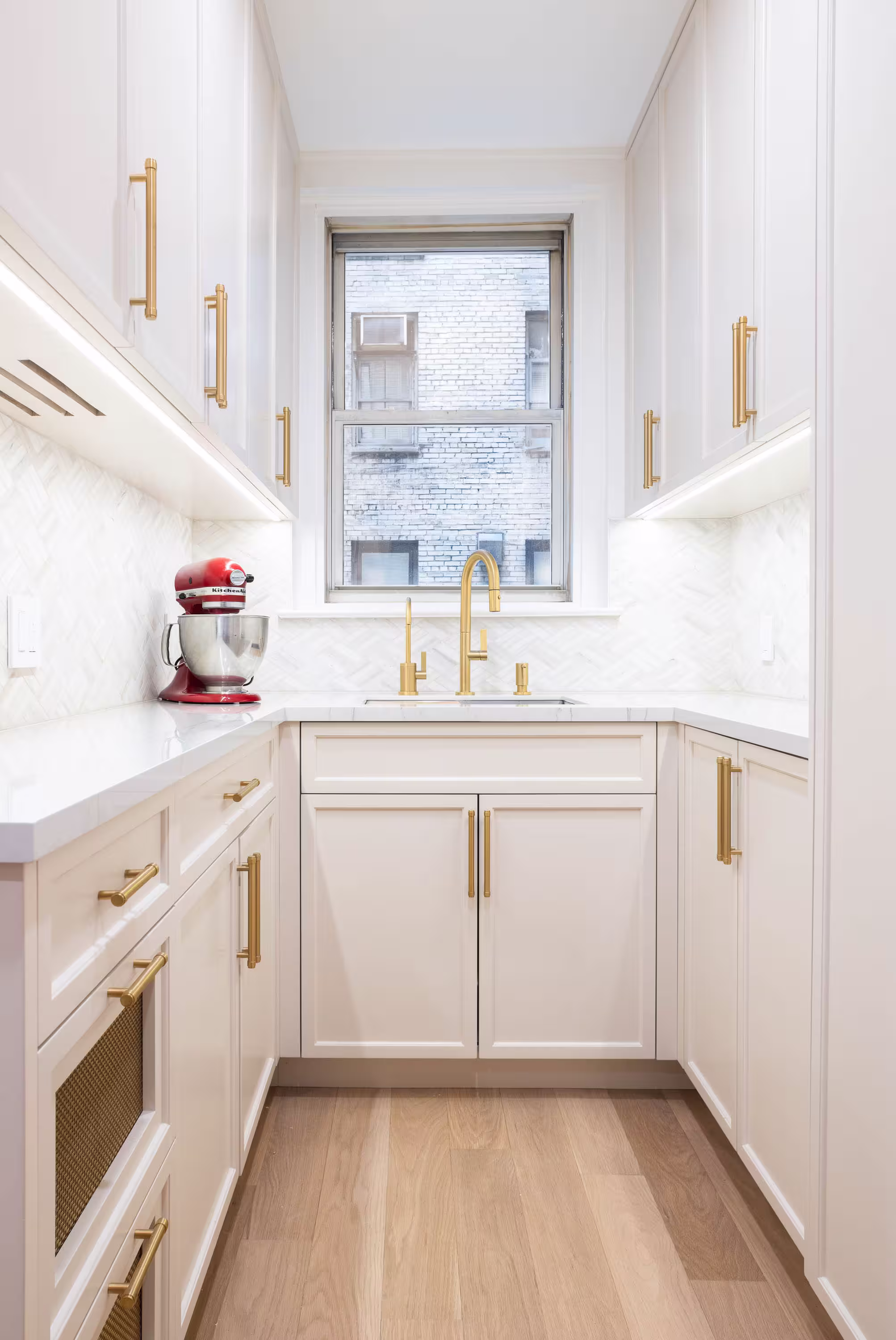

L-Shaped Kitchen Layout

An L-shaped kitchen makes efficient use of corner space by connecting two adjoining walls into a natural workspace. This configuration works especially well in open-concept NYC apartments, where one side of the layout can transition seamlessly into the living or dining area. The open leg of the “L” also creates opportunities to add an island or breakfast nook, enhancing both function and social flow. Corner storage can be a challenge, but solutions like pull-out shelves or lazy Susans make these tight spots accessible. In our boutique Manhattan co-op renovation at 230 E 50th Street, an L-shaped kitchen layout helped maintain an open, airy feel while keeping the design cohesive with the soft, traditional aesthetic of our client’s Turtle Bay pied-à-terre.

‍

‍

‍

‍

U-Shaped Kitchen Layout

A U-shaped kitchen uses three connected walls to maximize counter space, storage, and efficiency. This layout works best in larger NYC apartments, townhomes, or brownstones where there’s enough room to maintain proper circulation, which is ideally at least 5 to 6 feet of clearance in the center. In smaller spaces, thoughtful lighting, light-toned finishes, or open shelving can prevent the layout from feeling boxed in. When well-executed, the U-shape offers the convenience of a true chef’s workspace with everything within reach. In our full renovation of a pre-war co-op at 1035 Fifth Avenue, the expansive layout allowed for a U-shaped kitchen complemented by a built-in breakfast nook that balanced luxury with everyday comfort.

‍

‍

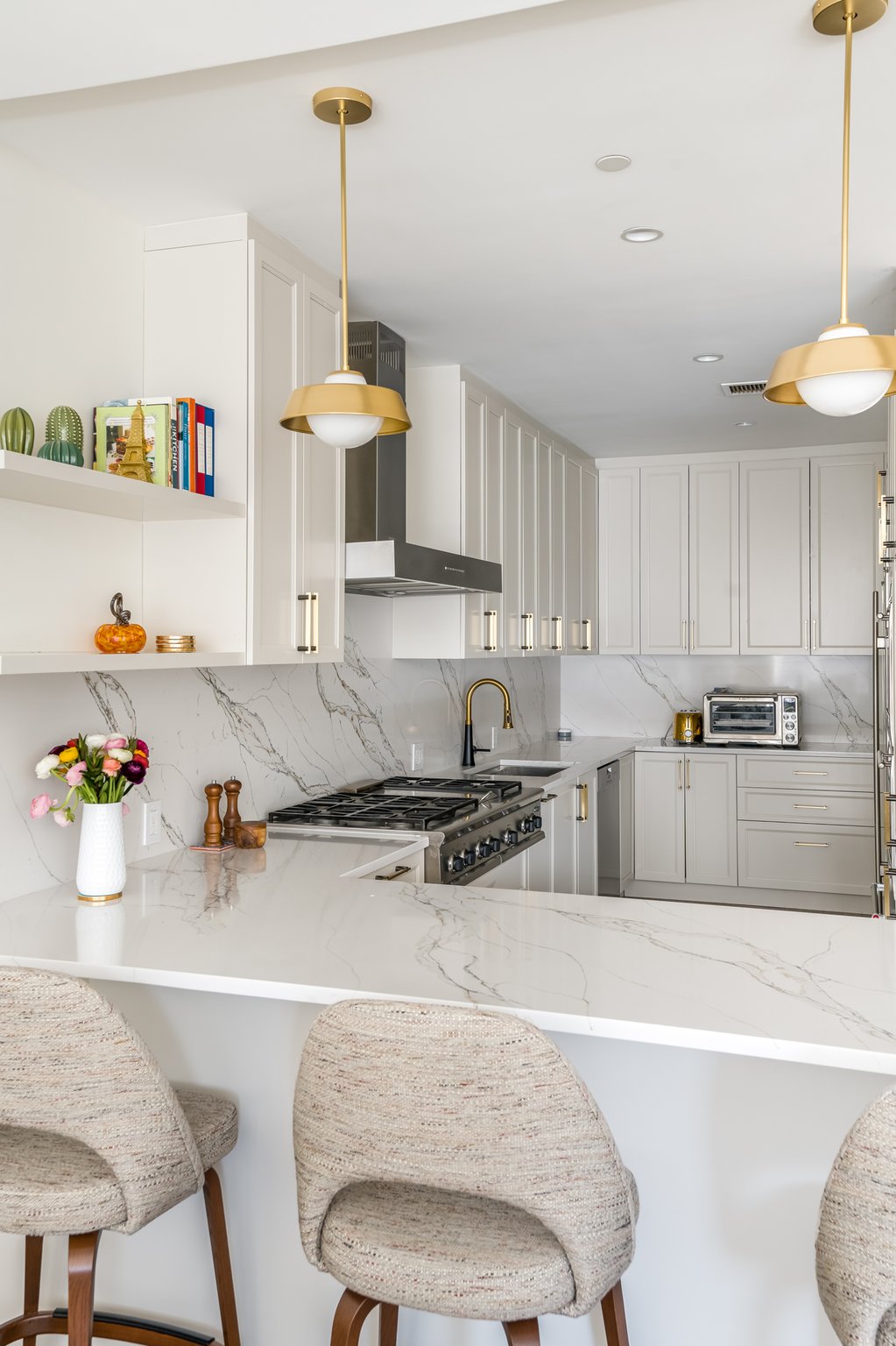

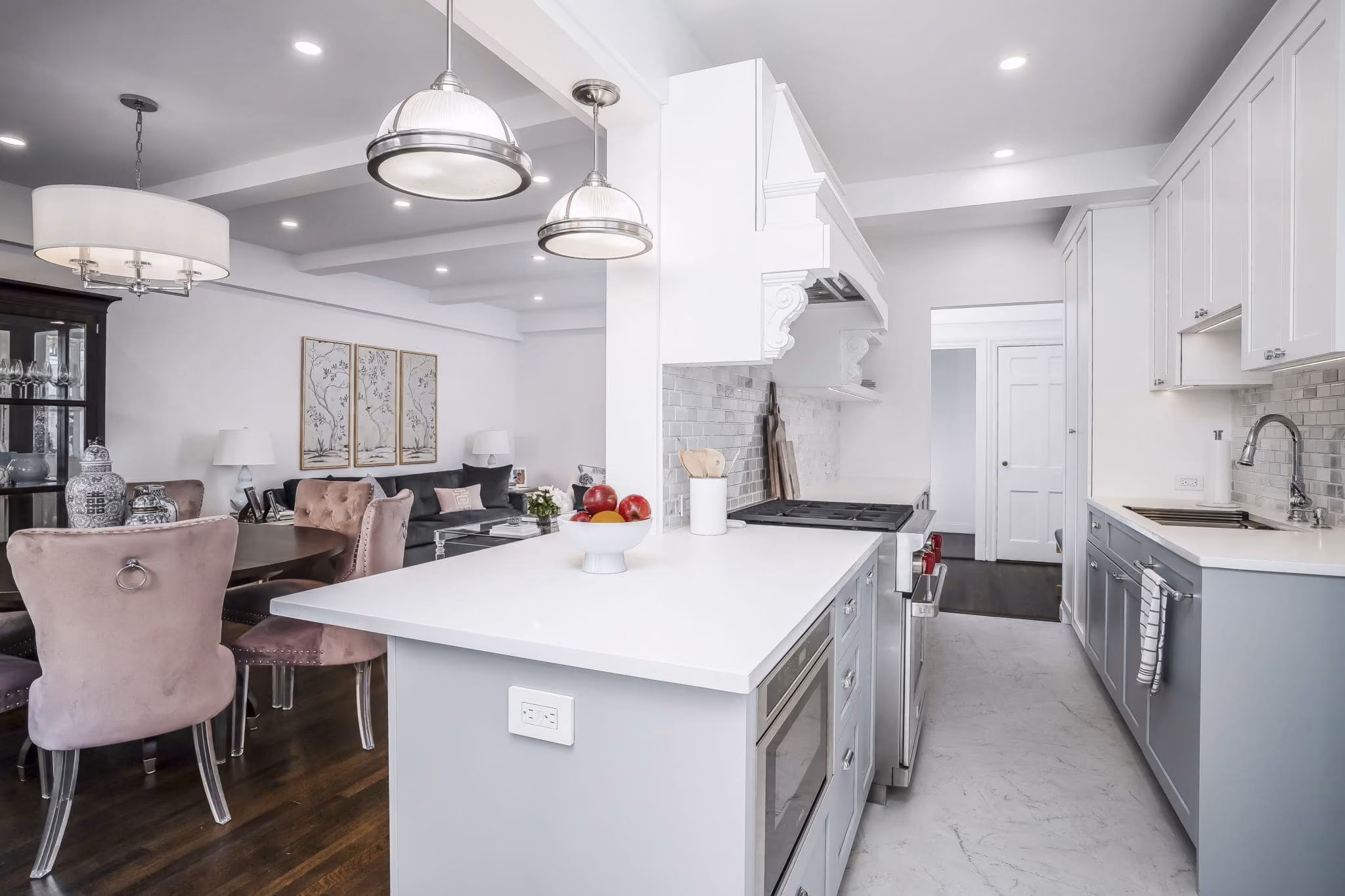

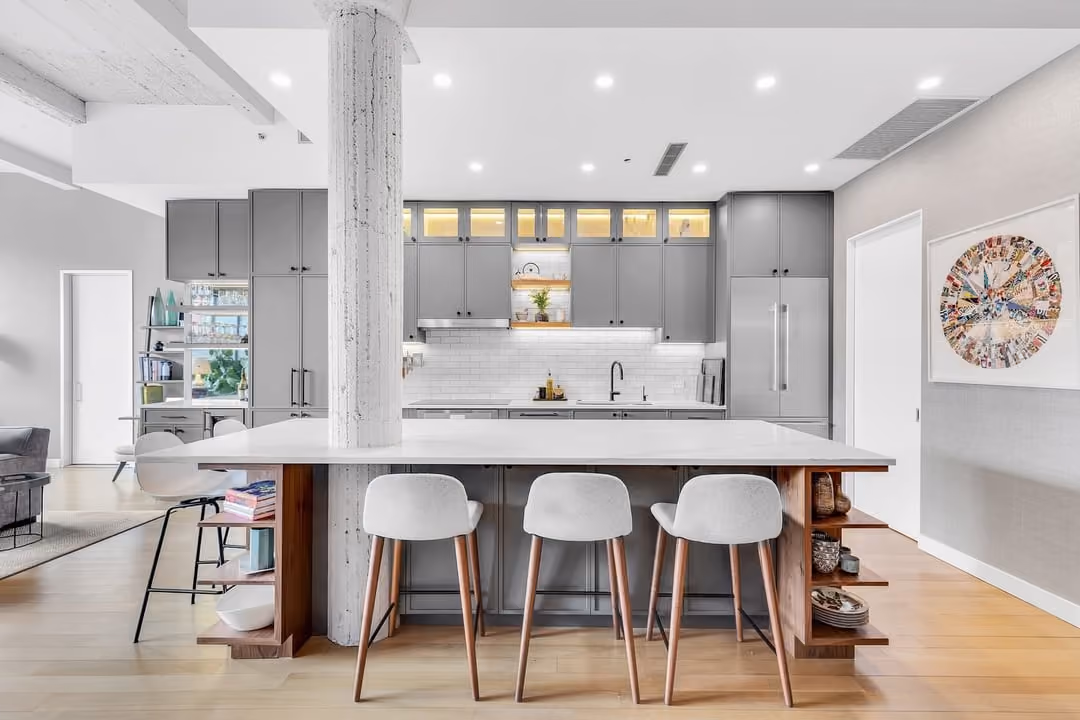

Island And Peninsula Layouts

The most modern approach to kitchen layouts is an island and peninsula layouts, which brings both function and flexibility to your kitchen design and home overall. An island works best in kitchens with at least 3 to 4 feet of clearance on all sides, providing enough room for comfortable circulation. One of our favorite island designs comes from our Manhattan condo renovation in The Chelsea Mercantile at 252 Seventh Ave, which features a massive island as the centerpiece to the space, which we built up to three inches to create a thicker appearance for the elegant and calm gray Armani Silver marble countertop. In tighter apartments, a peninsula—attached on one end to a wall or cabinet run, offering similar benefits with a smaller footprint. See an example of a convenient peninsula design in our Sutton Place co-op renovation in The Sovereign at 425 East 58th Street.

Both configurations can serve multiple roles: extra prep area, casual dining space, or additional storage. Islands can also integrate built-in appliances like wine fridges or microwaves to streamline workflow. Whether free-standing or anchored, these elements turn the kitchen into a true social and functional centerpiece. See a variety of island and peninsula layouts via our full NYC kitchen renovation portfolio.

‍

‍

[#4]Maximizing Storage in Your Kitchen Layout[#4]

With tight quarters and often no room to grow, NYC kitchens thrive when storage is at the core of the design. The right approach can make even a compact kitchen feel organized, open, and effortless. A perfect example is our Chelsea co-op renovation at 107 W 25th Street, where the entire layout was reimagined around built-in storage and flow, proving that form and function can coexist beautifully in even the most rigid Manhattan spaces.

‍

‍

Vertical Storage That Reaches New Heights

When floor space is limited, think above and beyond. Extending cabinets to the ceiling eliminates wasted space and creates room for less-used items, while also giving the kitchen a taller, more polished look. In our Chelsea co-op renovation, we used two-tier cabinetry that reached full height, adding both elegance and practicality.

‍

‍

Solving the Corner Conundrum

Corners are often wasted space, but smart design provides a solution. Features like Magic Corner pull-outs, lazy Susans, and swing-out shelves make these tight spots functional without disrupting flow. In the same Chelsea project, a Magic Corner organizer leveraged an area that once sat unused, offering easy to access add-on storage for pots, pans and whatever else may fit the space.

‍

‍

Built-In Pantries for Compact Kitchens

Traditional walk-in pantries are rare in NYC apartments, but that doesn’t mean you can’t have one in spirit. Integrated pantry cabinets and narrow pull-outs provide the same convenience while blending seamlessly with surrounding cabinetry. Hidden compartments and full-height pantry walls keep everything close at hand without overwhelming the room.

• Further Consideration: The Truth About Luxury Kitchen Cabinets Costs: What You’re Really Paying For

‍

Innovative Storage Zones

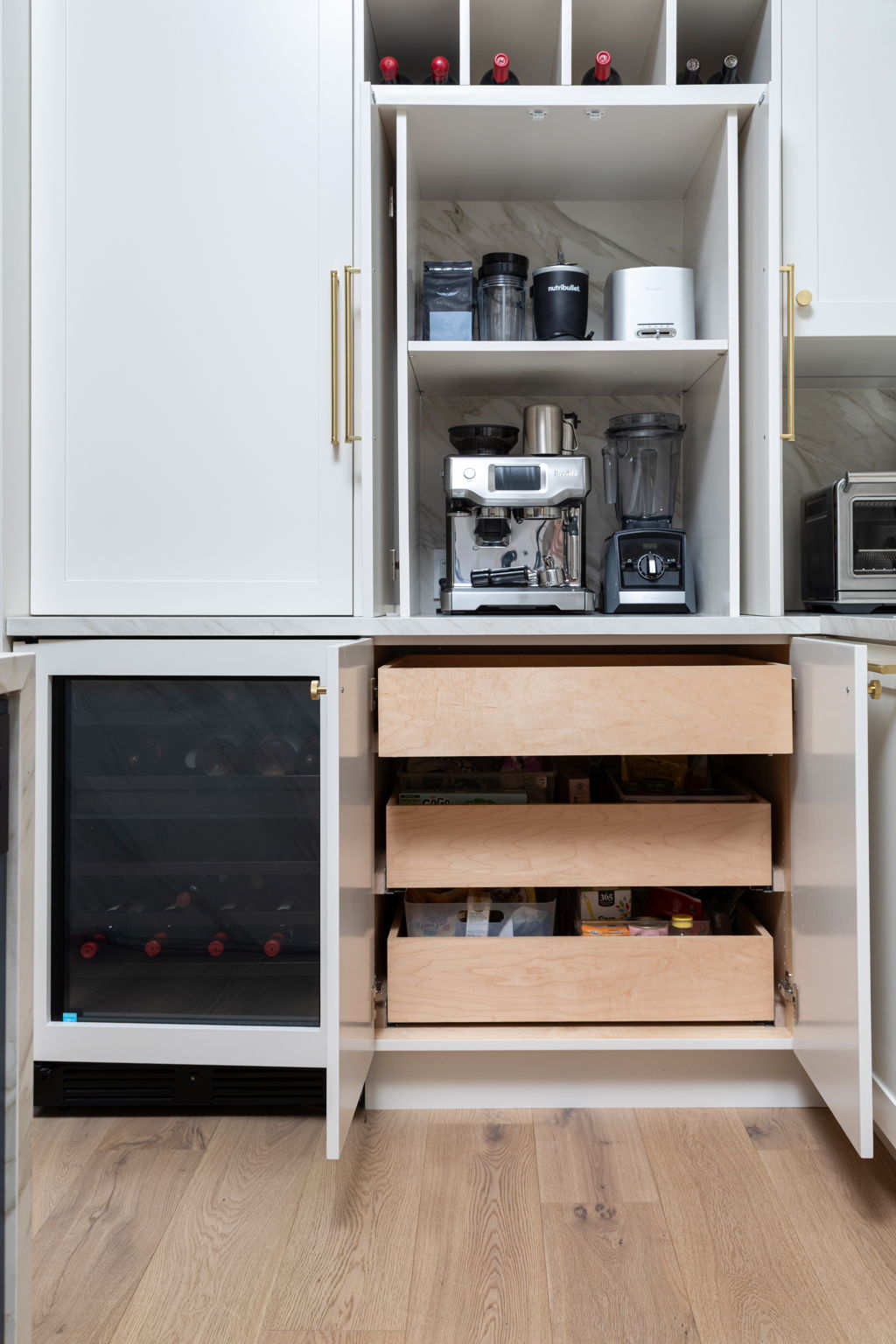

The best NYC kitchens mix smart planning with creative detailing. Toe-kick drawers hold baking sheets or linens, appliance garages hide countertop clutter, and pull-out spice racks or concealed charging stations keep the design sleek and efficient. In the Chelsea renovation, a built-in appliance garage with pocket doors maintained clean sightlines while a discreet charging drawer kept tech essentials tucked away.

For more clever and space-saving kitchen ideas, read our NYC Kitchen Accessories Guide: Smarter Storage, Sleeker Design.

‍

‍

[#5]Planning For Essential Kitchen Zones[#5]

Despite there being various foundational kitchen layouts and plenty of storage suggestions to compliment each of them, the most efficient kitchen planning comes back to properly recognizing zones and designing them into your space in a way that makes most sense for your daily routine. Let’s review the core zones and how they can best be designed into your NYC apartment kitchen remodel for the most effective layout possible.

Prep Zone

The prep zone is the workhorse of the kitchen. This is where most daily activity happens, so creating enough room to maneuver here is essential. Continuous counter space is key, ideally positioned between the sink and cooking area to minimize back-and-forth movement. For NYC kitchens, we recommend 36 to 42 inches of uninterrupted countertop, though compact layouts can make the most of even 24 inches with thoughtful organization.

Keep prep tools, knives, and small appliances within arm’s reach using drawers or pull-outs directly below. Whenever possible, place the prep area near a natural light source or along an island, allowing your literal and figurative grind to find some solace from the sun. The smoother the workflow here, the easier every meal becomes.

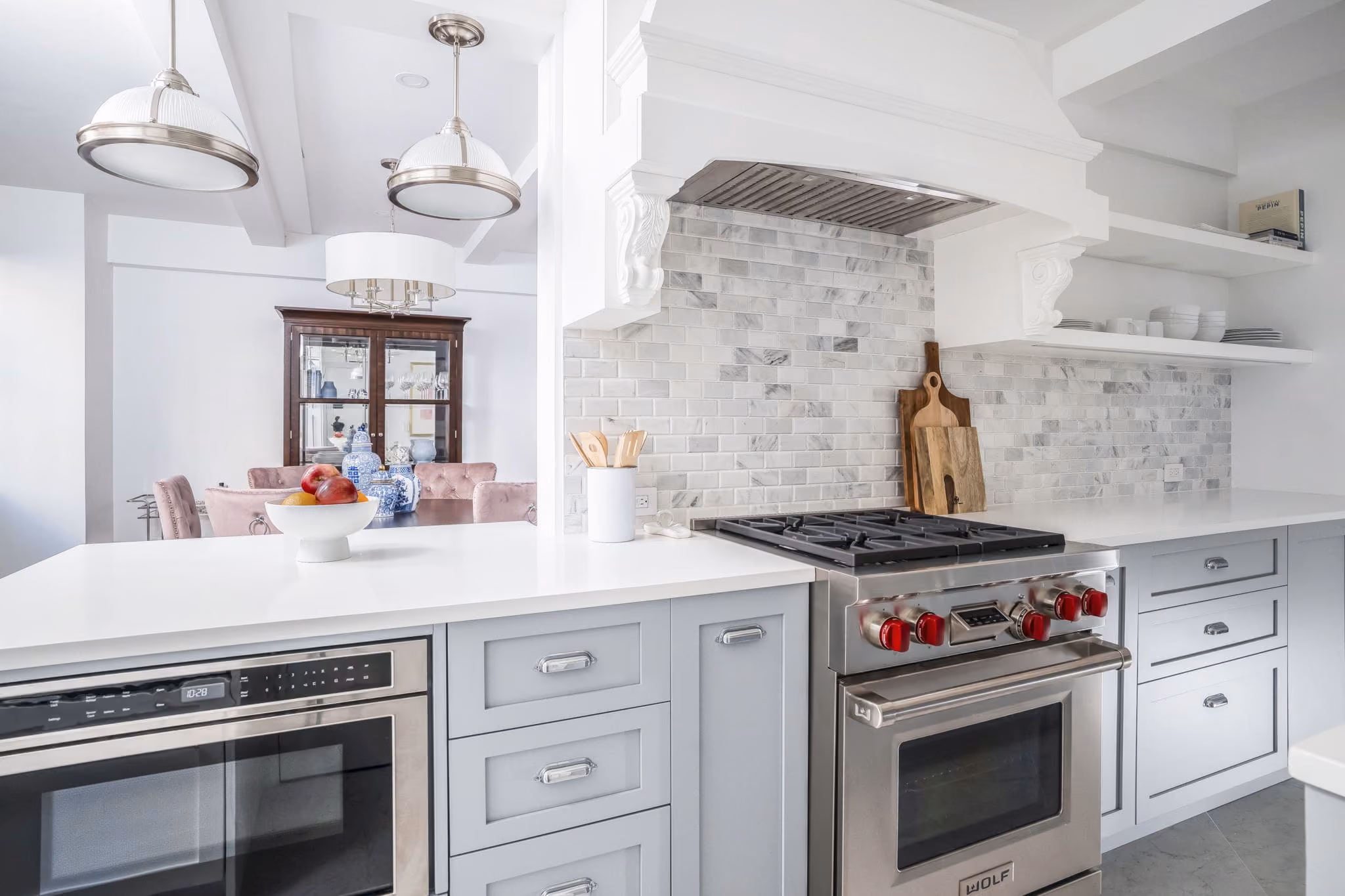

Cooking Zone

The cooking zone centers on the range or cooktop. We typically aim for at least 12 to 15 inches of counter space on each side of the range, which provides a safe, efficient workspace for handling hot pots and pans.

In NYC apartments, ventilation is a critical factor, which is why we always design our range hoods to comply with building and DOB codes. This can sometimes require recirculating models in co-ops without exterior vents (like we installed in the kitchen at our condo renovation in The Chelsea Mercantile). The last factor to consider in a cooking zone should be finding an area where pot and pan storage can exist nearby. Ideally, they live in deep drawers beneath the cooktop, which streamlines usage and minimizes clutter. A cooking zone should feel tight in design, but never cramped in use.

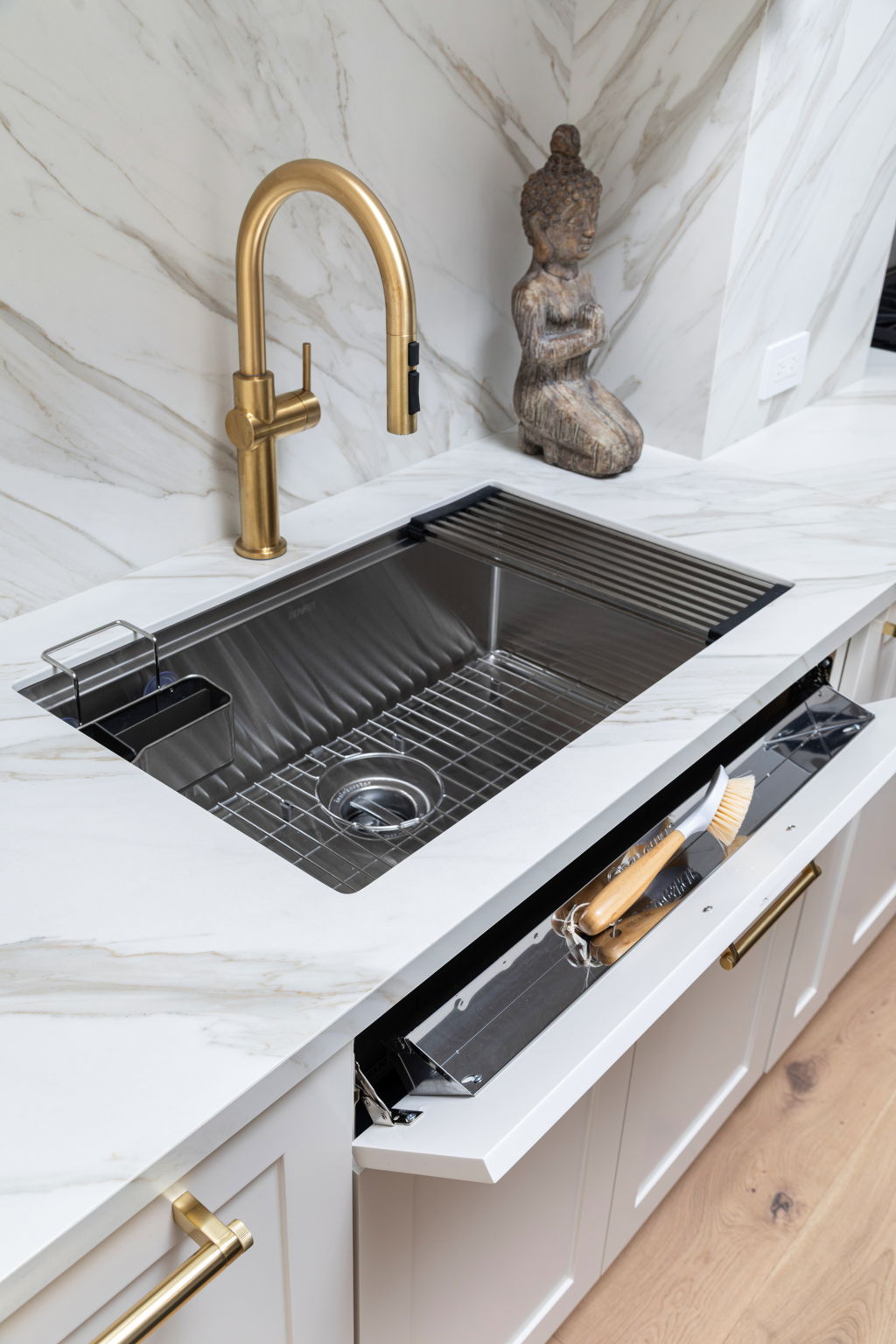

Cleaning Zone

Centered around the sink and dishwasher, the cleaning zone should be designed for flow and ergonomics. The sink should sit close enough to the dishwasher to allow easy dish transfer - we typically recommend staying within 36 inches — and have at least 24 inches of counter space on one side and 18 inches on the other for drying and staging dishes.

The cleaning zone is also where house supplies, trash, and recycling bins should live, ideally under the sink. Consider pull-out organizers or dual-compartment recycling/trash systems to keep everything accessible without sacrificing aesthetics.

Storage And Pantry Zone

The storage zone should tie the whole kitchen layout together. Refrigerator placement should allow for easy access from both the prep and cooking areas, with at least 15 inches of landing space nearby for unloading groceries or transferring ingredients. In compact kitchens, positioning the refrigerator near the entry point minimizes traffic through main work areas. See how we accomplished this flow within our co-op loft renovation in Tribeca at 335 Greenwich St.

If space allows, integrate a dedicated pantry zone. This could mean a tall cabinet, pull-out pantry, or recessed wall niche. This keeps dry goods organized and close to where they’re needed most. In our NYC kitchen renovations, we often combine tall storage units with vertical pull-outs or concealed shelving to balance workflow and aesthetics, providing storage that supports the entire cooking process rather than interrupting it.

‍

‍

[#5]Common Kitchen Layout Mistakes To Avoid In NYC Renovations[#5]

Kitchen design comes at you fast, and if you’re not careful, so do the mistakes. Below are some of the most common layout missteps we see in NYC homes - along with how to avoid them during your renovation process.

Designing Without Understanding Building Infrastructure

Many homeowners start planning layouts before verifying what can actually move. Gas risers, plumbing stacks, and electrical loads often limit where appliances can go — especially in pre-war co-ops. Failing to confirm these conditions early can derail plans and add costly redesigns mid-project. At Gallery, we work with our clients from property purchase all the way through the end of their renovation, meaning we make sure all design plans factor in any potential behind the scenes hang-ups.

• Learn More: Our Design-Build Process - Outlined From Start To Finish

Overcomplicating Small Kitchens

While cooking like the pros should always be the goal, trying to fit a full chef’s kitchen into a 90-square-foot galley can backfire. Too many appliances, overbuilt cabinetry, or an unnecessary island can make the space feel heavy and restrictive. The smartest NYC kitchens embrace restraint.

• More To Consider: Small Kitchen Design & Renovation Tips To Maximize Your NYC Kitchen Space

Ignoring How You Actually Use Your Kitchen

This one is key. Too often, homeowners design for looks, not lifestyle, prioritizing aesthetics over workflow. Whether you cook daily, host often, or order in from Sant Ambroeus, your kitchen should be shaped around real routines, not hypothetical habits. At Gallery, our design process includes in-depth questions for our clients about how they plan on using their space on a routine basis, how many appliances they have, the size of the pots and pans, etc. By covering all grounds, your NYC kitchen renovation planning becomes based in reality, not theory.

Underestimating Lighting Design

Even the most beautifully crafted kitchen falls flat without proper lighting. In windowless or north-facing apartments, failing to layer ambient, task, and accent lighting can make prep areas dim and the room feel lifeless. Smart lighting elevates both function and mood, and is a key consideration during our design planning process with clients.

• Add Some Color: Our Interior Design Process

Bringing Your NYC Kitchen Vision To Life

Designing an efficient kitchen layout in New York City is equal parts creativity and strategy. Between limited square footage, structural constraints, and the intricacies of co-op or condo regulations, success depends on experience. At Gallery KBNY, we’ve spent years transforming kitchens of every shape and size across Manhattan and Brooklyn, tailoring each one to the people who actually live there. From reimagining pre-war galleys to crafting open-concept chef’s kitchens in modern lofts, our full-service design-build approach unites thoughtful design with expert execution.

Ready to cook up a new and improved kitchen of your own? Contact Gallery to begin planning a layout that not only looks beautiful, but finally works the way your life demands. For more inspiration, explore our portfolio of NYC renovation before and afters, or read our recent guide on Kitchen Renovation Ideas for NYC Homes.
